Galvanized Steel-Jacketed Insulated Pipe

Galvanized Steel-Jacketed Insulated Pipe is designed for above-ground and outdoor thermal energy transmission systems. The pipe consists of a working pipe, rigid polyurethane (PU) insulation layer and a galvanized steel outer jacket.

The PU insulation layer effectively reduces heat loss, while the galvanized steel jacket provides weather resistance, mechanical protection and long-term durability in outdoor environments. The outer jacket is formed using a spiral structure, providing good overall mechanical strength and structural stability.

The pipe ends are supplied with 150–250 mm exposed working pipe to facilitate on-site alignment and welding. Field insulation jointing can be completed using preformed insulation sections or site-applied insulation, while insulated fittings can be factory prefabricated for easier installation.

Key Advantages

Excellent Thermal Insulation — Rigid PU foam effectively reduces heat loss and improves thermal efficiency.

Weather-Resistant Outer Jacket — Galvanized steel provides durable protection for outdoor and exposed installations.

Reduced UV Aging Risk — Compared with conventional PE outer jackets, the galvanized steel jacket is better suited to long-term outdoor exposure.

High Structural Strength — Spiral-formed galvanized steel provides good overall bending strength and stable jacket structure.

Easy On-Site Welding — 150–250 mm exposed pipe ends facilitate alignment and welding during installation.

Flexible Field Joint Insulation — Insulation joints can be completed using preformed insulation sections or site-applied insulation.

Factory-Prefabricated Fittings — Insulated fittings can be prefabricated to simplify field installation.

Long-Term Outdoor Service — The three-layer structure protects the working pipe and insulation from direct environmental exposure.

Project-Specific Configuration — Pipe dimensions, insulation parameters and outer jacket specifications can be customized.

Applications

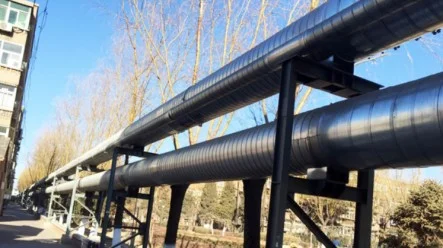

District Heating · Above-Ground Heating Networks · Outdoor Steam & Hot Water Pipelines · Industrial Thermal Systems · Power Plants · Petrochemical Facilities · Chemical Plants · Municipal Heating Infrastructure · Thermal Energy Transmission
