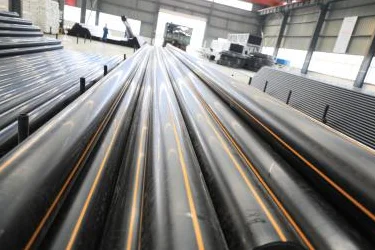

PE100 HDPE Gas Pipe
High-Performance PE100 Piping for Natural Gas Distribution
Material:PE100 · BorSafe™ HE3490-LS
Diameter Range:DN20–DN630· Customizable
Pressure Rating:PN0.8–PN1.6 MPa · Customizable
Connection:Butt Fusion · Electrofusion
Applications:Natural Gas Distribution · Gas Transmission · Industrial Gas
Color:Yellow / Black with Yellow Stripe / Custom
Product Description:
PE100 HDPE Gas Pipe is manufactured using BorSafe™ HE3490-LS, a high-performance bimodal PE100 compound designed for pressure pipe applications including natural gas distribution. The material provides excellent resistance to slow crack growth and rapid crack propagation, supporting reliable long-term performance in gas pipeline systems.
With a diameter range of DN20–DN630 and pressure ratings from PN0.8 to PN1.6 MPa, the pipe can be supplied in straight lengths or, for sizes up to DN110, in coils for faster installation and reduced jointing requirements.
Product Specification Sheet
Nominal Outer Diameter | ||||
SDR11 | SDR17 | SDR17.6 | SDR21 | |
20 | 3.0 | |||
25 | 3.0 | |||
32 | 3.0 | |||
40 | 3.7 | 3.0 | ||
50 | 4.6 | 3.0 | ||
63 | 5.8 | 3.8 | 3.6 | 3.0 |
75 | 6.8 | 4.5 | 4.3 | 3.6 |
90 | 8.2 | 5.4 | 5.2 | 4.3 |
110 | 10.0 | 6.6 | 6.3 | 5.3 |
125 | 11.4 | 7.4 | 7.1 | 6.0 |
140 | 12.7 | 8.3 | 8.0 | 6.7 |
160 | 14.6 | 9.5 | 9.1 | 7.7 |
180 | 16.4 | 10.7 | 10.3 | 8.6 |
200 | 18.2 | 11.9 | 11.4 | 9.6 |
225 | 20.5 | 13.4 | 12.8 | 10.8 |
250 | 22.7 | 14.8 | 14.2 | 11.9 |
280 | 25.4 | 16.6 | 15.9 | 13.4 |
315 | 28.6 | 18.7 | 17.9 | 15.0 |
355 | 32.2 | 21.1 | 20.2 | 16.9 |
400 | 36.4 | 23.7 | 22.8 | 19.1 |
450 | 40.9 | 26.7 | 25.6 | 21.5 |
500 | 45.5 | 29.7 | 28.4 | 23.9 |
560 | 50.9 | 33.2 | 31.9 | 26.7 |
630 | 57.3 | 37.4 | 35.8 | 30.0 |
Note: Other sizes, pressure ratings and customized specifications are available upon request.
Product Highlights
Premium BorSafe™ HE3490-LS Material – Manufactured with high-performance PE100 material specifically developed for pressure pipe applications including natural gas distribution.
Excellent Crack Resistance – High resistance to slow crack growth and rapid crack propagation for enhanced pipeline reliability.
Reliable Gas Distribution Performance – Designed for safe and stable long-term operation in underground natural gas pipeline systems.
Coiled Supply up to DN110 – Smaller-diameter pipes can be supplied in long continuous coils, helping reduce joints and accelerate installation.
Reliable Fusion Connections – Butt fusion and electrofusion provide strong, leak-resistant joints and a continuous pipeline system.
Lightweight & Flexible – Easier to transport, handle and install than traditional metal gas pipes, especially in challenging underground conditions.
Corrosion Resistant – Excellent resistance to soil corrosion and chemical attack, eliminating the need for conventional external corrosion protection.
Applications
Natural Gas Distribution, Urban Gas Networks, Gas Transmission, Industrial Gas Pipelines, Residential Gas Supply, Commercial Gas Networks, Underground Gas Infrastructure
